Silica Gel Switch Controller
LEGACY · SAMPLING ONLYHT001 silicon switch controlling heating textile, with NTC temperature sensor ports.
Out of production, available for sampling and testing.

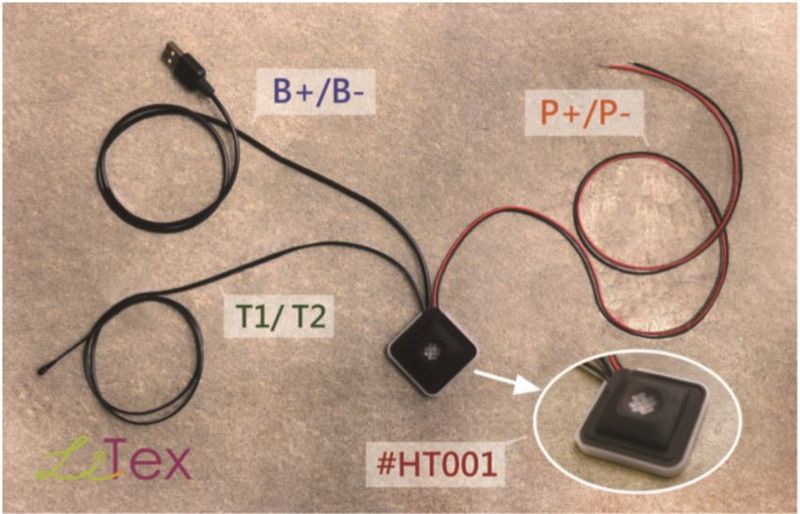

Ports: P+ / P− heating textile port · B+ / B− battery input port · T1 / T2 NTC temperature sensor.
| Property | Value |
|---|---|
| Model | #HT001 Silicon switch |
| Size (W×L×H) | 38 × 38 × 8 mm |
| Input & output volts | 3.3 V – 12 V |
| Current | MAX 5 A |
| LED sign | RGB LED, 3 sets |
Source: archive/extracted-from-images.md §3, transcribed from images/silica-gel-switch-controller-spec.jpg
