RFID Wired Woven Tape

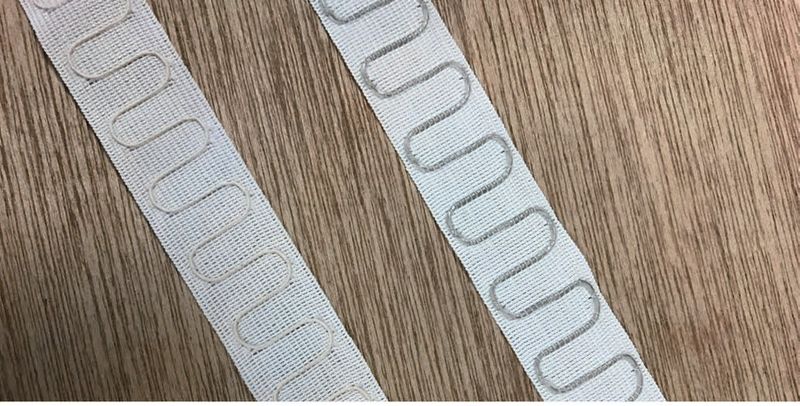

IN PRODUCTIONNarrow woven tape with conductive wire inside, providing RFID tag antenna reception.
Tape is 20 mm wide polyester with 0% elasticity. The woven conductive path has a wavelength of 1.8 cm and a 2× amplitude of 1.5 cm across a 2 cm width. Integration by hot-melt adhesive or sewing. The selvage edge prevents yarn fraying. An RFID chip can be fixed to the tape with epoxy.
All specifications are customizable; OEM and ODM services are offered.
| Property | Wire type 1 | Wire type 2 |
|---|---|---|
| Conductive core — material | Copper | Stainless 316L |
| Conductive core — orientation | S | — |
| Max resistance (20 °C) | 326.2 Ω/km | 1400 Ω/km |
| Max current | 0.2 A | — |
| Filaments | — | 275 × 2 |
| Covering — outer diameter | 0.631–0.633 mm | 0.95 mm |
| Covering — material | TPU | TPU |
| Covering — colour | Black | Black |
Source: 2018-rfid-textile-tape.pdf p.2, verified against the rendered PDF page on 2026-08-11
