Conductive Metal Yarn

IN PRODUCTION

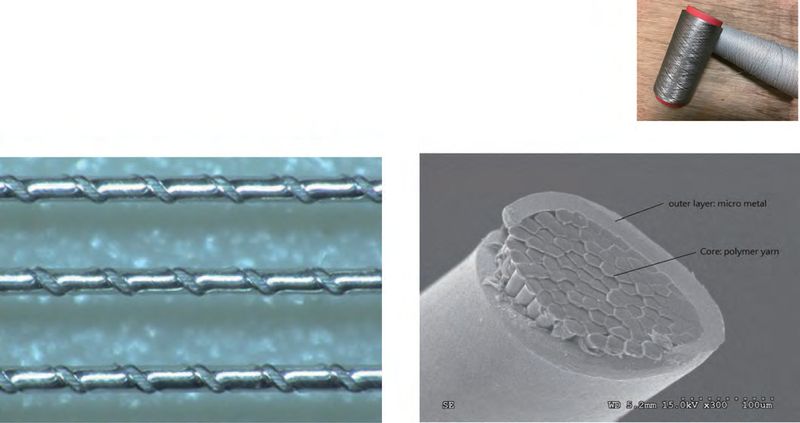

Tinned copper filaments helically wound around a core. Loom-made, so it is mass manufacturable.

REACH · RoHS · SGS

Coverings are tinned copper. Coating options are PU and FEP (Teflon). More coverings lower the resistance and increase toughness.

Conductive Metal Yarn — specifications

Item	Coverings	Ø no coating (mm)	Ø coated (mm)	Resistance (Ω/M)
010/N(K)30'*3/1S	1	0.27±0.02	0.47±0.05	~4.4
010/N(K)30'*3/1S1Z	2	0.33±0.02	0.62±0.05	~2.5
010/N(K)30'*3/2S2Z	4	0.53±0.02	0.75±0.05	~1.4
010/N(K)30'*3/3S3Z	6	0.55±0.02	0.84±0.05	~1
010/N(K)30'*3/4S4Z	8	0.65±0.02	—	~0.8

Source: 2018-non-carbon-electrical-heating-textile.pdf, extracted via pdftotext -layout
